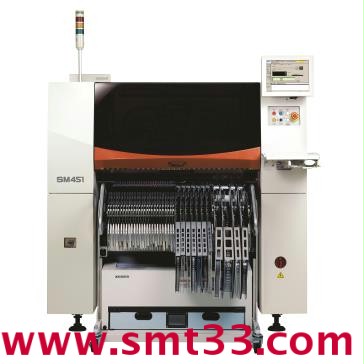

      Name:Multi Function SMT Mounter SM451
      Model:Multi Function SMT Mounter SM451
      Brief:

      Multi Function SMT Mounter SM451

      ▶ Speed : Chip 8,500 CPH

      QFP 4,000 CPH

      ▶ Accuracy : ±50 ㎛@±3σ/Chip

      ±25 ㎛@±3σ/QFP

      ▶ Parts size : 0603~55㎜ x 42mm(H28㎜)

      ▶ PCB size : L460mmx W420mm (Standard)

      L610mm x W460mm (Max)

      Content

      Multi Function SMT Mounter SM451

      ❙  Introduce

      ▶ Speed : Chip 8,500 CPH

                      QFP 4,000 CPH

      ▶ Accuracy : ±50 ㎛@±3σ/Chip
                           ±25 ㎛@±3σ/QFP
      ▶ Parts size : 0603~55㎜ x 42mm(H28㎜)
      ▶ PCB size  : L460mmx W420mm  (Standard)

                            L610mm x W460mm (Max)

      ▶ Reinforced Applicability to Odd Shaped Parts

      ▶ High Precision Force Control System

      ▶ Applicable to Special Package

      ❙ Specification

      Model SM471plus SM481plus SM482plus
      Spindles 10 Spindles ×2 Gantry 10 Spindles ×1 Gantry 6 Spindles ×1 Gantry
      Placement Speed 78,000CPH(Optimum) 40,000CPH(Optimum) 30,000CPH(Optimum)
      Placement Accuracy ±40μm@μ±3σ ±40μm@μ±3σ ±40μm@μ±3σ
      Applicable Parts 0402 ~ 14mm(H 12mm) 0402 ~ 42mm(H15mm) 0402 ~ 55mm(H 15mm)
      Applicable PCB Max. 510(L) x 460(W)(Standard) Max. 460(L) x400(W)(Standard) Max. 460(L) x400(W)(Standard)
      Max. 610(L) x 460(W)(Option) Max. 1500(L) x 460(W)(Option) Max. 1200(L) x 510(W)(Option)
      Dimension(mm) 1650×1690×1458 1650×1680×1530 1650×1680×1458
