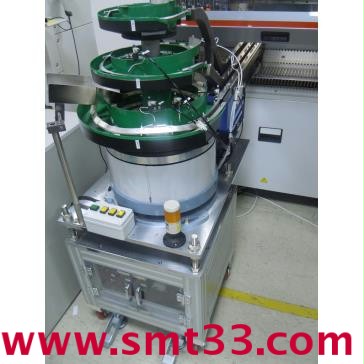

Hanwha SMT Bowl Feeder
❙ Introduce
SMT Bowl Feeder
▶Outline Dimension(mm): W500 x L1,200 x H950(1Step)
▶Bowl Uhit Supply Speed: More than 20 bowls / Min
▶Liner Uhit Tack Time : 1.0 sec / 10mm
▶Number of Supplying Lanes: 1 Lane for each bowl
▶Pick up Height(mm) : H875mm ~ H935mm
Special Option : H925mm ~ H985mm
❙ Specification
| Model | SM471plus | SM481plus | SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
