Why Hanwha SMT Machine
I. Captive Technology
-
Global OEM - building electronics for industrial, military, medical, commercial, and consumer applications in rigorous, non-stop production environments worldwide
-

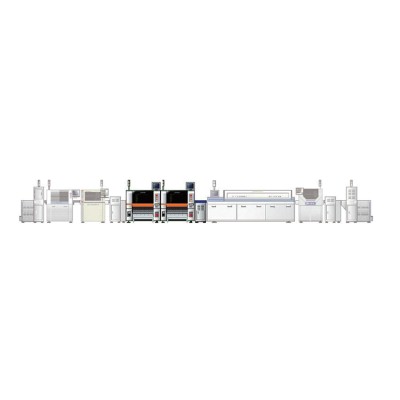

Turn-key line solutions - printer, placement, reflow, and board-handling equipment, complete with factory service and support from beginning to end of line, complete with overall process expertise
-
Subsystems - machine vision and intelligent SMART (Simple + Modular + Available + Reliable + Throughput) technologies
II. Scalable Platform
-
Chip, flex, and odd-form-capable platforms - for dynamic productivity, control and efficiency; all built on a common- family platform
-
Compatibility and modularity - with legacy technology , including feeders, nozzles and program portability
III. SupportSynergy
-
Hanwha’s strategic infrastructure - for R&D, manufacturing, applications support and logistics to locations worldwide
-
Sales, service, and parts - handled responsively 24/7 by Samsung-Certified Expert Technical Services Engineers at locations throughout North America
-
Demonstration and training - available at numerous facilities throughout North America
IV. ReturnOnInvestment
❙ Introduce of Hanwha Pick & Place
Hanwha techwin SMT line solutions high speed pick and place machine, Hanwha placement, Hanwha chip mounter, for smart factory.
❙ Specification of Hanwha Pick & Place
| Model | SM471plus | SM481plus | SM482plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
❙ Customer Factory

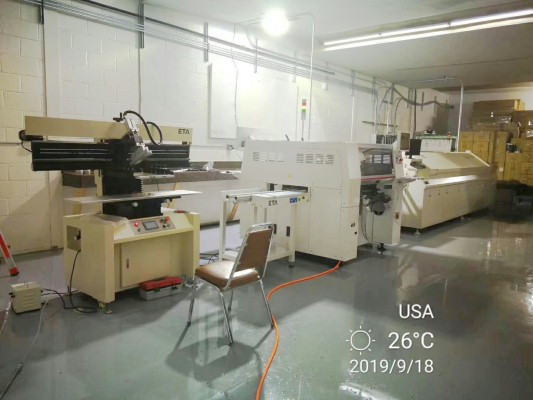

▽ ETA USA Customer
▽ ETA Vietnam Customer
▽ ETA Ecuador Customer
▽ ETA Iran Customer
❙ Company Profile
Successful Experience:
Eta's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
❙ ETA SMT Machine Exhibition
❙ ETA SMT Machine Certificate
❙ ETA Global Service
❙ Customers' Feedback
❙ FAQ
If You Could Not Find Any Similar Items You Want, You May Send Some Photos to Us. Because Our Catalog and Website Haven't Included All of Our Products.
❙ Hanwha Pick & PlaceVideo
-
Low cost of ownership - with minimum maintenance requirements, comprehensive warranty, free technical support, free lifetime software upgrades and intuitive user-friendly operator interfaces
-
Optimum utilization - with advanced software tools, quick-change feeder carts, setup verification and the industry's first fully automatic loading tape feeder
