1.1.2. Setting Manager Mode

The system manager password is needed to use the system setup menu. Access with

system manager and the password setup must be done in the following manner.

When accessing with system manager and setting up the password, perform access and

setup as follows.

When accessing with system manager, perform access as follows.

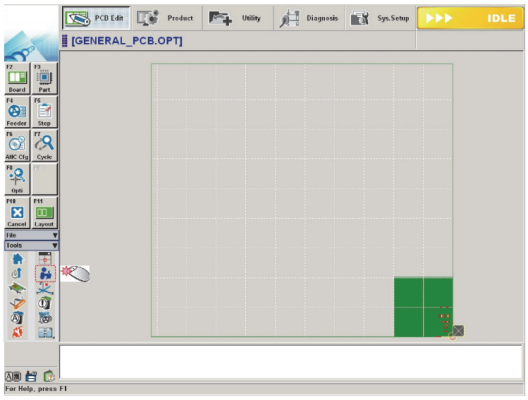

1. Click the ‘Operation Mode Change’ button in the submenu

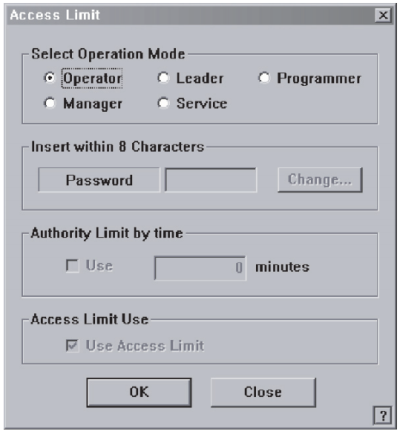

2. Then the following dialog box appears.

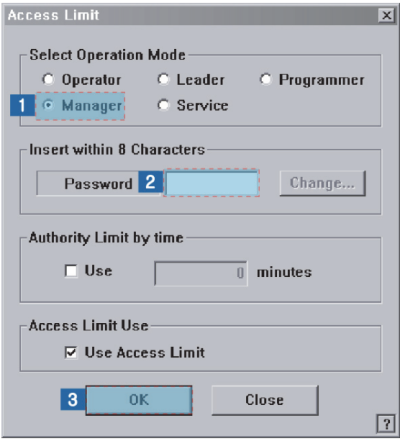

3. The setup with the manager mode is made in the following manner..

(1) Select the <Manager> option button in the <Select Operation Mode> group

(2) Enter the manager password in the <Password> editor box.

(3) Click the <OK> button.

1.2. Changing Password

Except for the plain users, each user mode has a password. The password is needed to set

each user mode. The password must be set within 8 characters.

Caution Do not share the programmer mode and manager mode

with the users other than the corresponding users. Damage

may be caused by the incorrect operation of the MMI by the

unauthorized user in the programmer mode or manager

mode.

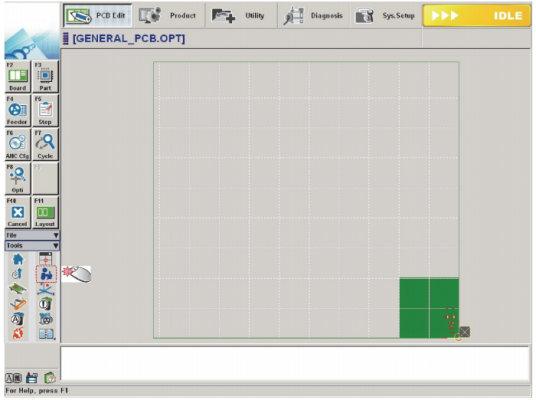

•      Select the ‘Operation Mode Change’ button in the menu-toolbar in the System

Manager Mode.

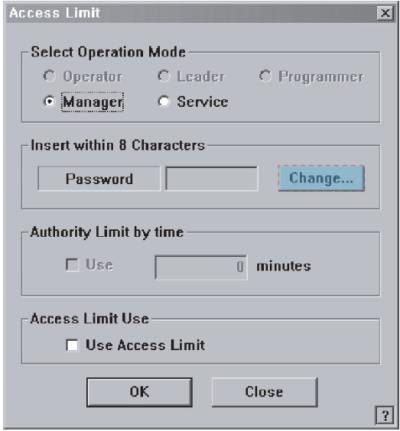

Once the ‘Operation Mode Change’ has been selected, the following dialog box

appears.

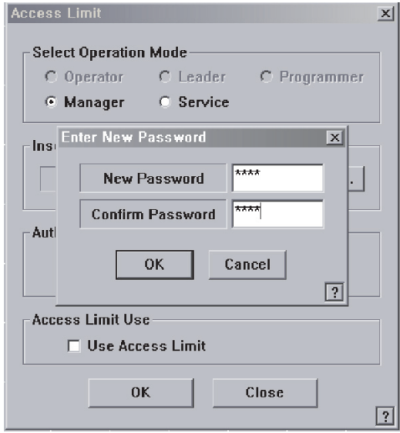

Click the <Change> button. And then the following dialog box appears.

• Enter the password in the <New Password> edit box.
• Re-enter the password in the <Confirm Password> edit box in order to confirm the set password.

• Then click the <OK> button to apply the change.

1.3. Setting User Login Time

User authorization is automatically changed to ‘Operator’ after the set period of time.

The setup is performed in the following manner.

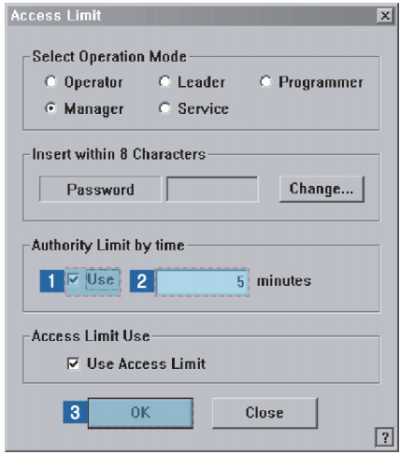

• Select the <Use> check box in the <Authority Limit by time> group.
• Input the time to set in the edit box in minutes.
• Click the <OK> button.

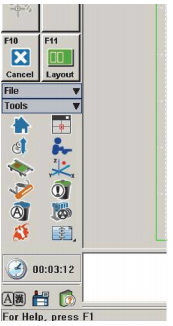

After the time is set up, the remaining time until the time for the authorization change is

indicated below the shortcut menu of the Tools at the right of the MMI.
